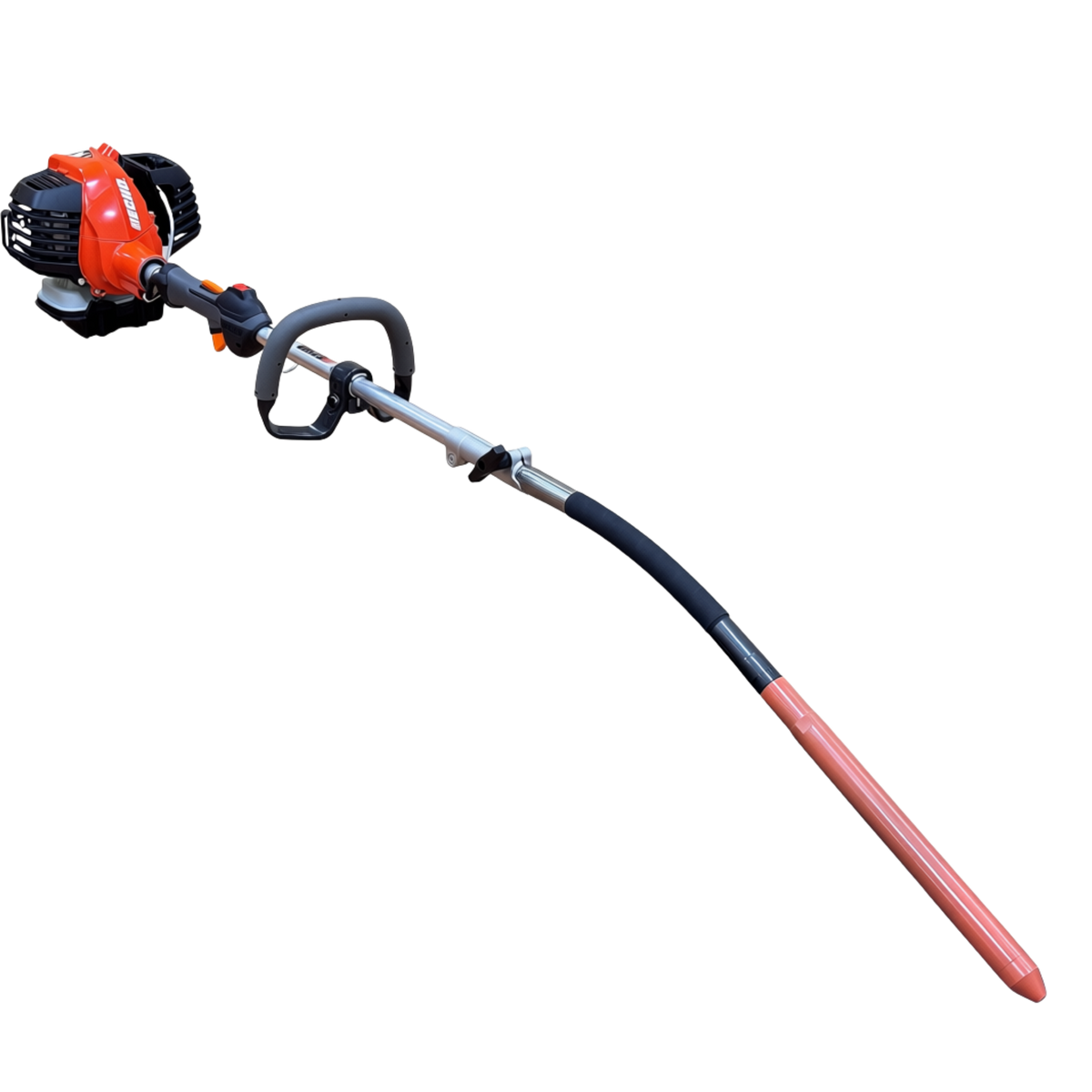

Northrock CSV 25 Handheld Concrete Vibrator with ECHO PAS-2620 Powerhead

CSV 25 handheld concrete vibrator. Assembled and supported in Bohemia, New York.

• ECHO PAS-2620 powerhead, 25.4 cc professional-grade 2-stroke, 9.9 lb dry
• Two-stage air filtration and a vibration-reduction system, built for long days
• Bellows-style fuel transfer system for reliable starting
• Tool-less lead-in coupler changes shafts without tools
• 7-spline quick disconnect drive
• Runs Northrock vibrator heads in 1 in, 1-1/4 in, 1-1/2 in and 2 in
• No cord, no generator, no backpack harness

Fuel requirement

The PAS-2620 is a 2-stroke engine. Run gasoline pre-mixed with 2-stroke oil at the ratio given in the ECHO operator's manual. Straight unleaded gasoline will damage the engine.

Choosing your shaft

Pencil shafts flex into block cells and tight wall forms. Standard shafts are stiffer for footings and slabs. Both use the 7-spline quick disconnect.

Pencil shaft assembly 25BY24. Standard shaft assembly 25CA24.

Fitment

The CSV 25 uses a 7-spline drive. Square drive shafts from backpack units do not fit and must not be forced.

Ideal for sidewalks and footings, slabs, curbs, wet screeding and remote consolidation work.

Manufactured in the USA by Northrock Industries.
